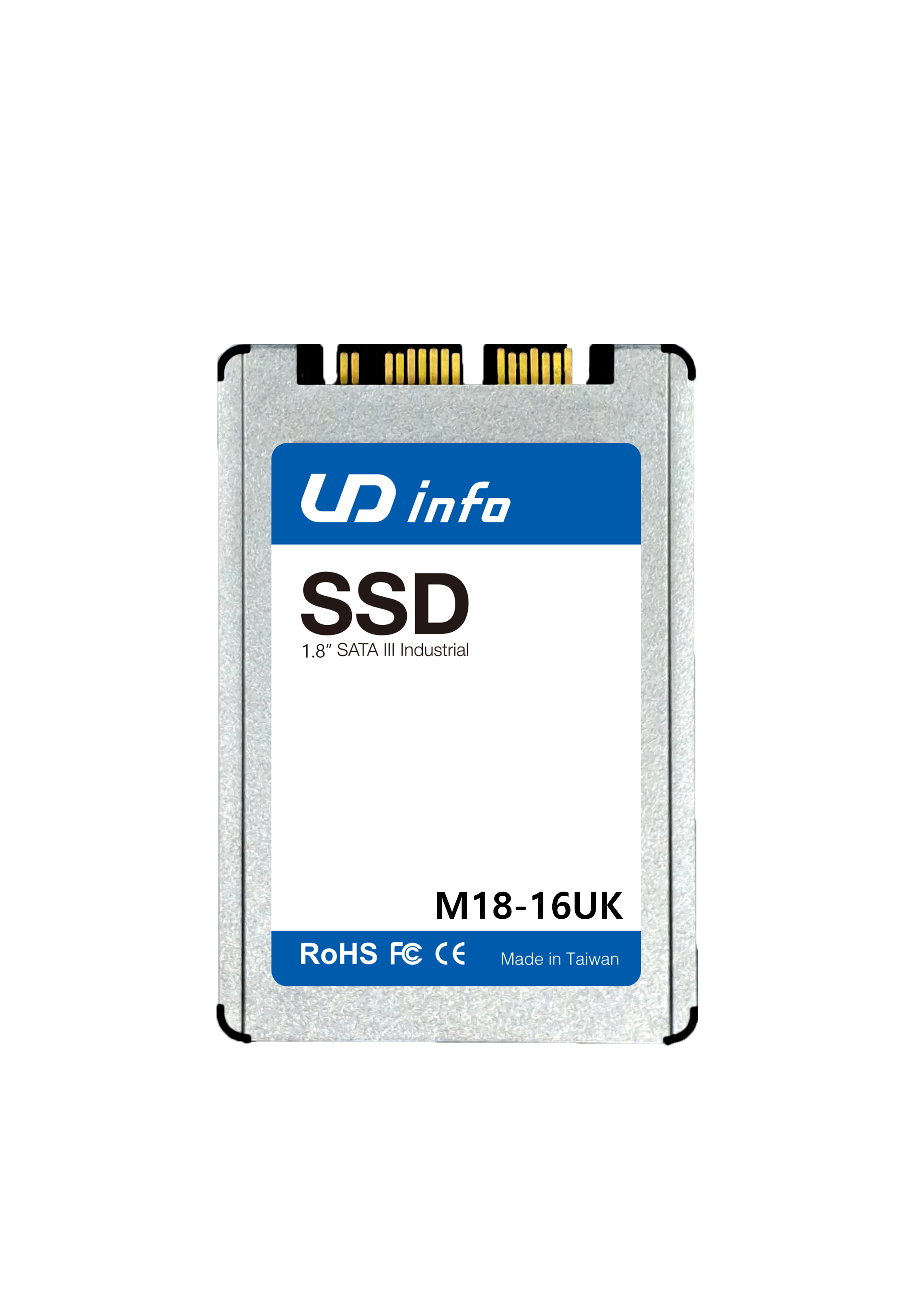

M18-16UK
SATA Revision 3.1
-
Being fully compliant with standard 1.8-inch form factor, providing low power consumption compared to traditional hard drive and hot-swapping.
-
Operating at a maximum operating frequency of 200MHz with 30MHz external crystal.
-
Provide a wide range up to 1TB.
-
Reach up to 550MB/s read as well as 470MB/s write high performance based on Toshiba’s NAND flash (with 32MB SDR cache enabled and measured by CrystalDiskMark v5.0).
Download Files
Product Specifications
| Series Name | M18-16UK | ||||
|---|---|---|---|---|---|
| Interface | SATA Revision 3.1 | ||||
| Capacity Coverage | 8GB~1TB | ||||
| Capacity | |||||
| SLC | 8GB~128GB | ||||
| MLC | 32GB ~ 512GB | ||||
| 2D pSLC | 16GB ~ 256GB | ||||
| 3D TLC | 32GB~1TB | ||||
| 3D pSLC | 16GB ~ 256GB | ||||
| Performance Overview | Seq. R : 550 MB/s ; Seq. W : 470 MB/s | ||||
| Performance | |||||
| SLC | Seq. R : 470 MB/s ; Seq. W : 420 MB/s | ||||
| MLC | Seq. R : 550 MB/s ; Seq. W : 470 MB/s | ||||
| 2D pSLC | Seq. R : 550 MB/s ; Seq. W : 470 MB/s | ||||
| 3D TLC | Seq. R : 550 MB/s ; Seq. W : 470 MB/s | ||||
| 3D pSLC | Seq. R : 550 MB/s ; Seq. W : 480 MB/s | ||||
| Standard Operating Temperature | 0~70°C | ||||
| Extended Operating Temperature | -40~85°C | ||||
| Dimension LxWxH (mm) | 78.5mm(L) x 54mm(W) x 5.00mm(H) | ||||
| Technology | #conformal coating #S.M.A.R.T | ||||
| Data Sheet |  |
||||
