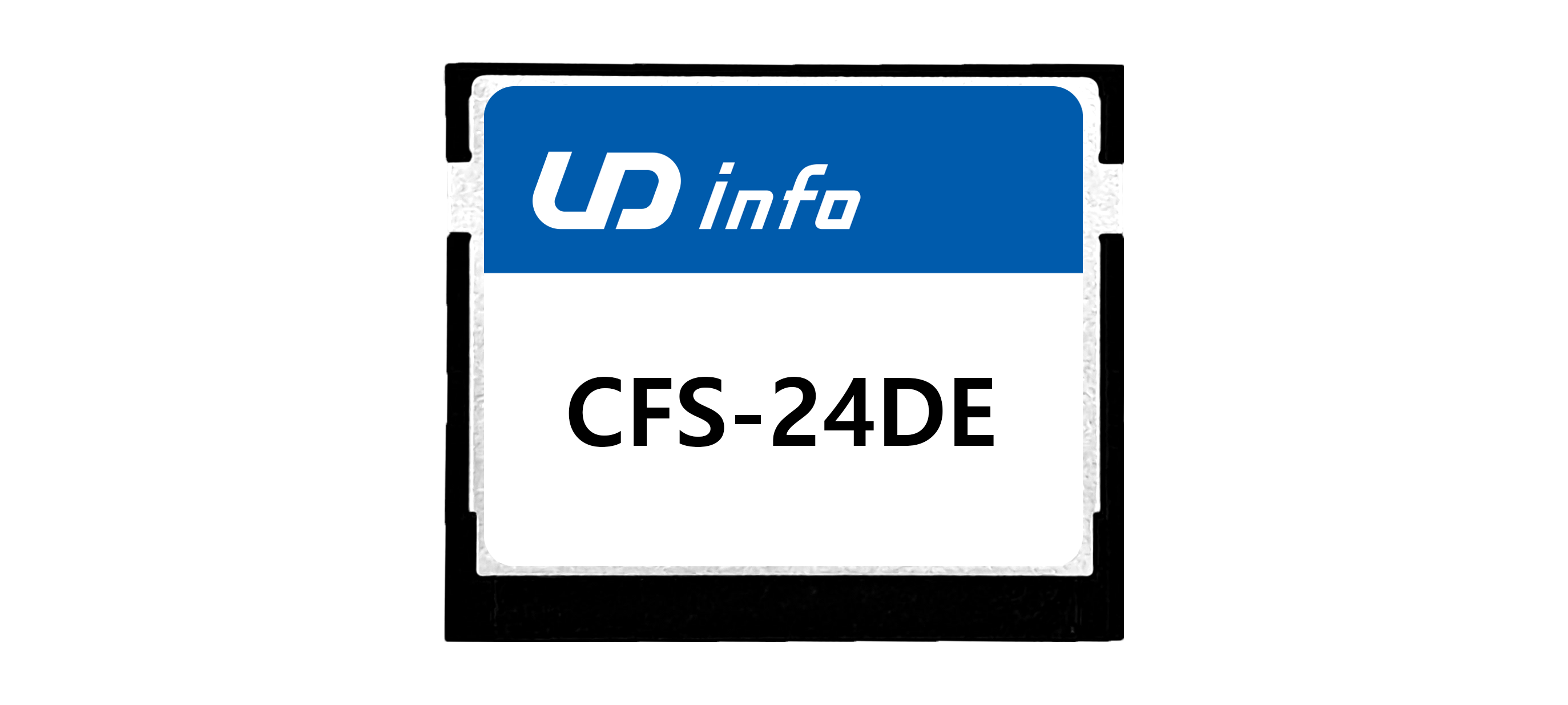

CFS-24DE
SATA Revision 3.1
-
The low power consumption, small form factor, and high shock-resistance.
-
Consisting of a SATA-based 7-pin standard interface for data segment and 17-pin for power and controller segment.
-
Reach up to 550MB/s read and 500MB/s write high performance standard.
Download Files
Product Specifications
| Series Name | CFS-24DE | ||||
|---|---|---|---|---|---|
| Interface | SATA Revision 3.1 | ||||
| Capacity Coverage | 32GB ~ 1TB | ||||
| Capacity | |||||
| 3D TLC | 64GB ~ 1TB | ||||
| 3D pSLC | 32GB ~ 128GB | ||||
| Performance Overview | Seq. R : 550 MB/s ; Seq. W : 500 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 550 MB/s ; Seq. W : 500 MB/s | ||||
| 3D pSLC | Seq. R : 550 MB/s ; Seq. W : 500 MB/s | ||||
| Standard Operating Temperature | 0~70°C | ||||
| Extended Operating Temperature | -40~85°C | ||||
| Dimension LxWxH (mm) | 36.4mm (L) x 42.8mm (W) x 3.3mm (H) | ||||
| Technology | #S.M.A.R.T #conformal coating | ||||
| Data Sheet |  |
||||
